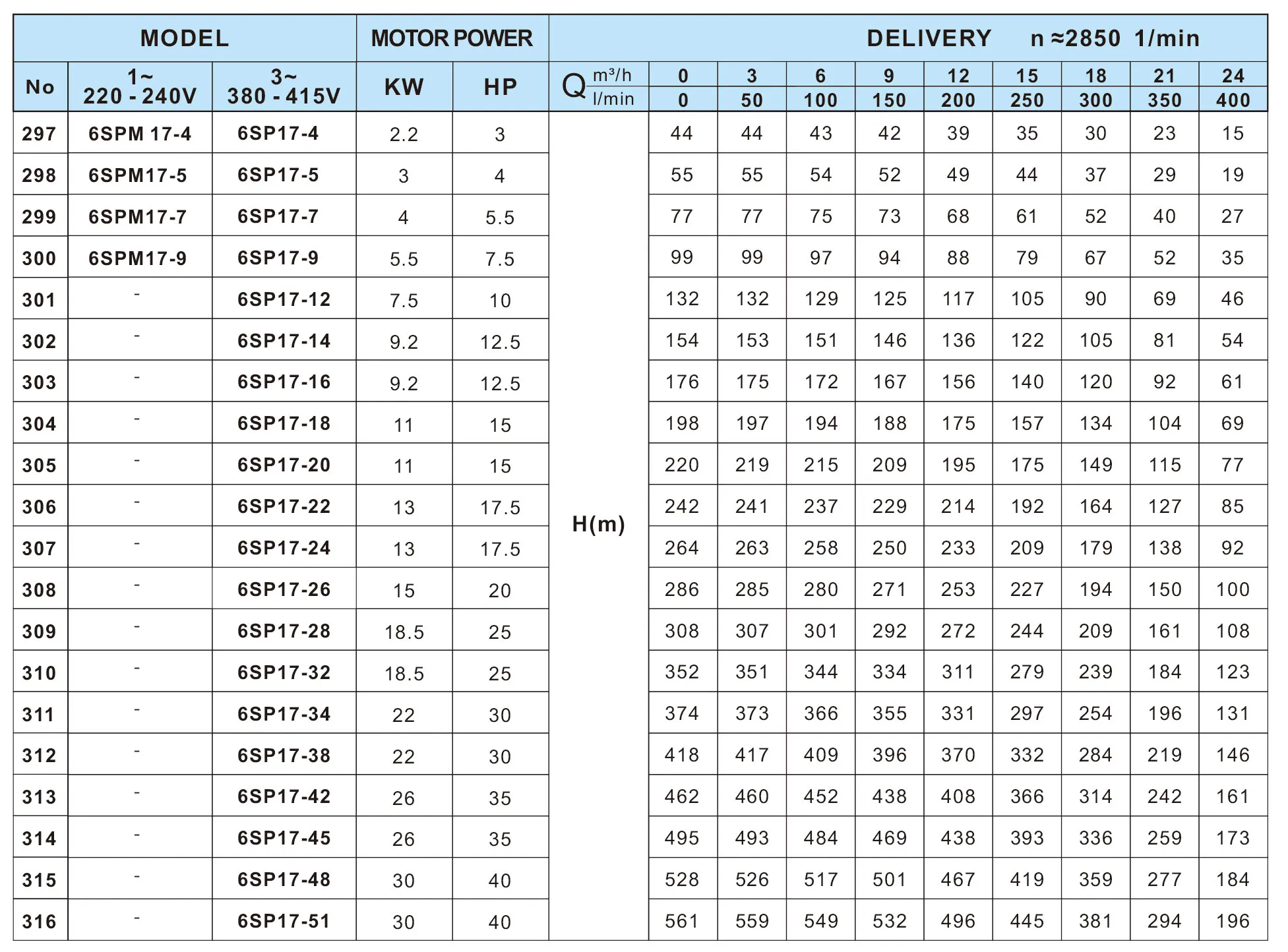

6SP

SP Series (with stainless steel impeller) --> MOTOR AND PUMP Rewindable motor or Hermetically -Sealed motor Single-phase:220-240V/50Hz Three-phase:380-415V/50Hz NEMA dimension standards Curve tolerance according to ISO 9001 OPERATING CONDITIONS Maximum fluid temperature up to+35℃ Maximum sand content:0.25% Minimum well diameter: 6”(150mm) APPLICATIONS For water supply from wells or reservoirs For domestic use,for civil and industrial applications For garden use and irrigation OPTIONS ON REQUEST Special mechanical seal

8SP SP Series (with stainless steel impeller) --> MOTOR AND PUMP ①Direct start(1 cable ) ②Star-delta start (2 cables ) Equip with start control box or digital auto-control box NEMA dimension standards Curve tolerance according to ISO 9001 Maximum diameter φ 175mm OPERATING CONDITIONS Maximum fluid temperature up to +50℃ Maximum sand content:0.25% Minimum well diameter:8〞 APPLICATIONS For water supply from wells or reservoirs For domestic use ,for civil and industrial applications Forgarden use and irrigation OPTIONS ON REQUEST Special mechanical seal

4SP SP Series (with stainless steel impeller) --> MOTOR AND PUMP Rewindable motor Single-phase:220-240V/50Hz Three-phase:380-415V/50Hz Equip with start control box NEMA dimension standards Curve tolerance according to ISO 9001 OPERATING CONDITIONS Maximum fluid temperature up to+35°C Maximum sand content:0.25% Minimum well diameter: 4" (100mm) APPLICATIONS For water supply from wells or reservoirs For domestic use,for civil and industrial applications For garden use and irrigation OPTIONS ON REQUEST Special mechanical seal Single phase motor with built-in capacitor
