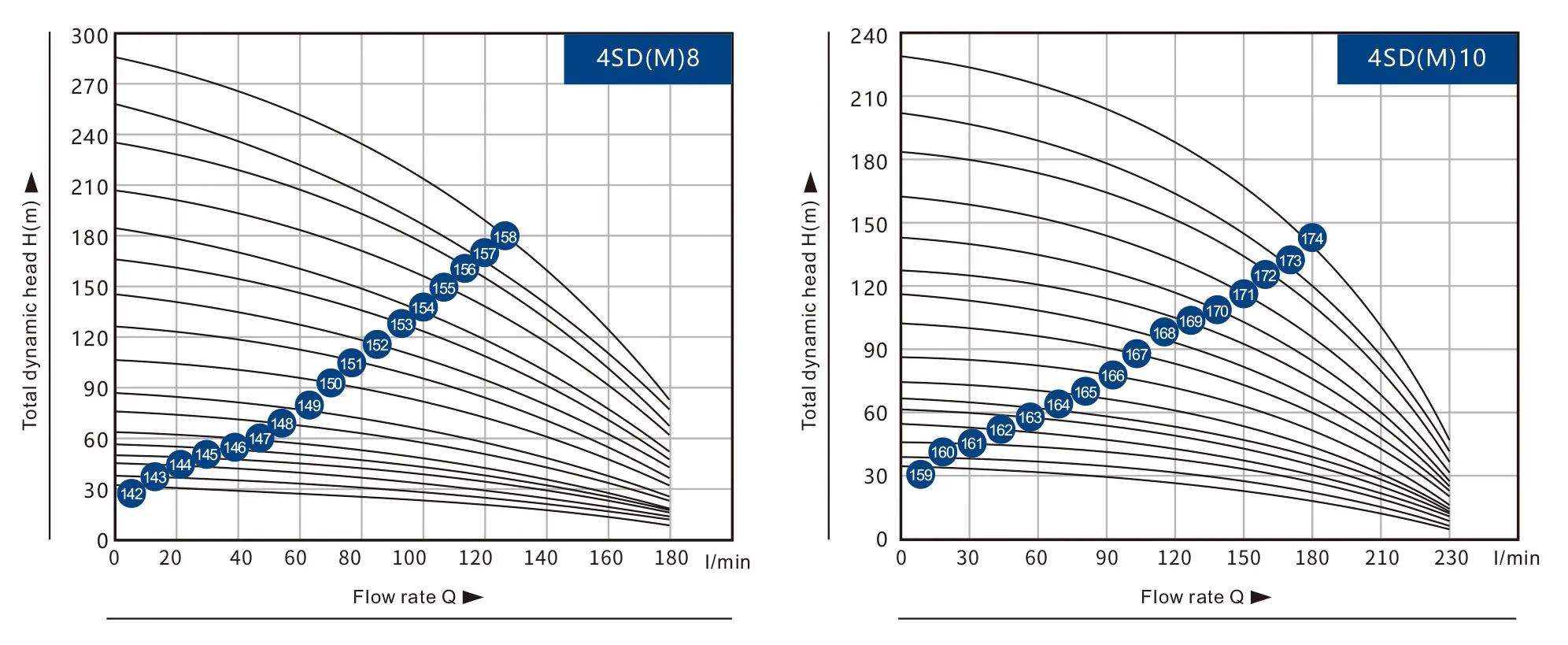

4SD

SD Series (with plastic impeller) MOTOR AND PUMP Rewindable motor Single-phase:220-240V/50Hz Three-phase:380-415V/50Hz Equip with start control box Pumps are designed by casing stressed NEMA dimension stands curve tolerance according to lSO 9001 OPERATING CONDITIONS Maximum fluid temperature up to +35℃ Maximum sand content:0.25% Minimum well diameter:4”(100mm) APPLICATIONS For water supply from wells or reservoirs For domestic use,for civil and industrial applications For garden use and irrigation OPTIONS ON REQUEST Special mechanical seal Single phase motor with built-in capacitor
